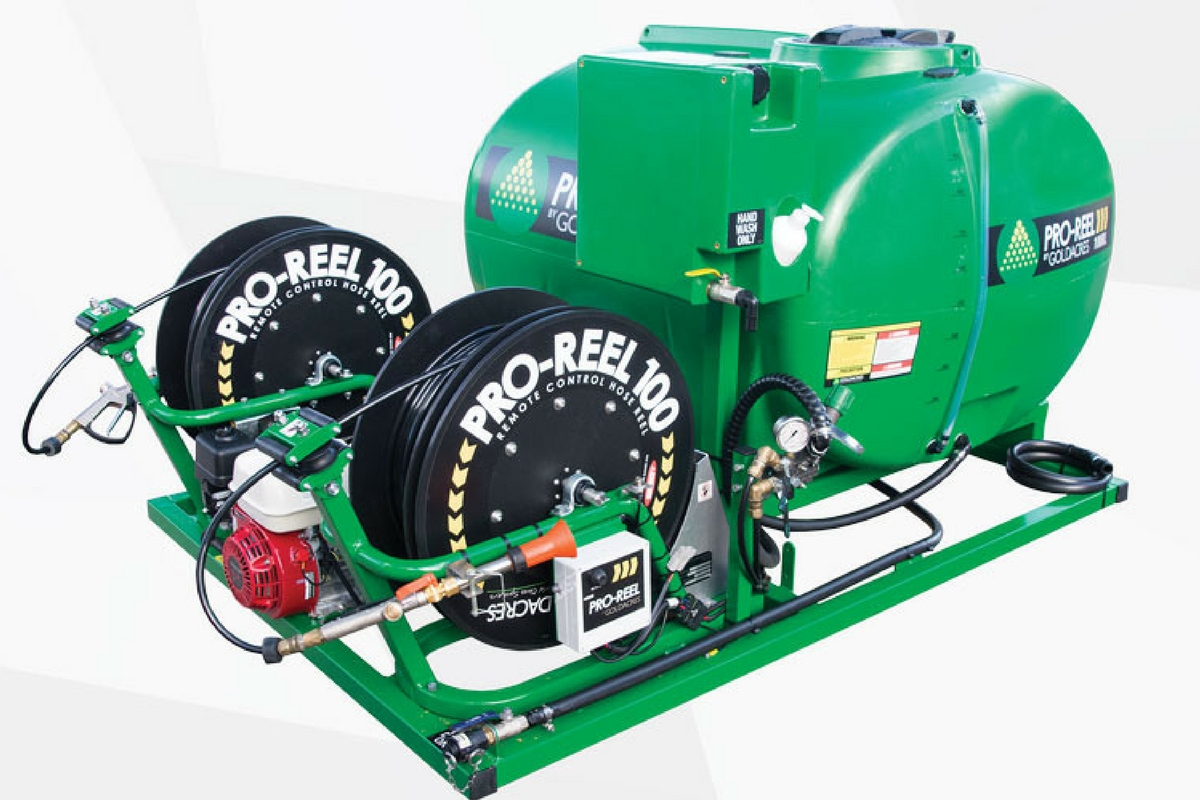

  • Goldacres Pro-Reel Twin Traymount

    The Pro-Reel® Twin is a traymounted sprayer range ideal for high pressure spraying duties requiring two operators. They come in tank sizes 400, 600, 800 & 1000L with a tank sump for complete tank drain, and compact dimensions to suit many tray applications.

    LIVE LOCAL THINK LOCAL

    As locally owned and operated businesses, our strong network of franchisees are part of their local community and understand the needs of their local customers.

    • 100m twin Pro-Reel
    • 2 x Turbo400 guns
    • Udor Kappa 40 L/min 580psi pump and Honda engine
    • 3-way DS manual controller with dump valve
    • 400L 1840L x 1400W x 927mm H
    • 600L 1840L x 1400W x 1175m H
    • 800L 1840L x 1400W x 1425mm H
    Pro-reel-handwash-1140

    Hand wash tank

    As an added safety and convenience the pro reel units can be fitted with a hand wash tank which also incorporates a removable soap dispenser. (standard on Pro-Reel® Twin units)

    Pro-reel-motor-1140

    Motor

    A simple 12 volt, 150w high torque motor is used which draws 16amps and drive at 450 rpm. The motor drives the reel via a simple V belt configuration at around 6 klm/hr which is a comfortable walking speed.

    Pro-reel-controller-1140

    Controller

    A quality Udor 3 way manual controller is used which features pressure regulation and a complete bypass flow dump valve for easy engine starting and precise pressure adjustment. The controller will handle up to 120 l/min of flow and 580 psi pressure.

    turbo400-1140

    Turbo 400 gun

    The turbo 400 gun is used across the range and it handles up to 70l/min of flow and 700 psi of pressure. It features a trigger lock handle with an easy adjustment lever from a straight stream to a fan. A hose swivel is fitted to eliminated hose tangles.

    Pro-reel-motorpump-1140

    Motor / pump

    Quality Udor high pressure diaphragm pumps are used across the range. The pumps are perfectly matched to suit the desired tank size and sprayer configuration and are coupled to the Honda engine via a 6:1 reduction gearbox. This pump and motor combination delivers an excellent mix of reliability, pressure and spray volume.


    Part No.  Description
    GA4905865-WR 400L Pro-Reel 100 twin reel
    GA4905870-WR 600L Pro-Reel 100 twin reel
    GA4905875-WR 800L Pro-Reel 100 twin reel
  •
