Precision farming options to maximize your productivity
Your new Nitro can be factory equipped with a Raven field computer and precision farming tools to maximize your application efficiency.
The Raven® Viper 4+ field computer can be factory installed and gives you features such as multiple product controlling, full mapping and data logging, AccuBoom automatic boom section control, AutoBoom automatic boom height control, as well as Raven’s new RS1 AutoSteer system with sub-meter to sub-inch accuracy options.
IntelliSpray
You can add IntelliSpray which is a system that maintains a constant droplet size as ground speed changes. IntelliSpray also gives you turn compensation and optional individual nozzle control. An added benefit is almost instantaneous on/off at the headlands.
Chemical Injection
Miller also offers factory installed chemical injection systems with capabilities of up to three low or high volume chemical injection pumps with your choice of up to four 50 gallon (189.3L) chemical tanks. You can use it to inject all your chemicals and only put water in the product tank or you can use it for spot spraying troubled areas of the field. Great versatility.
- Deluxe SprayView Cab

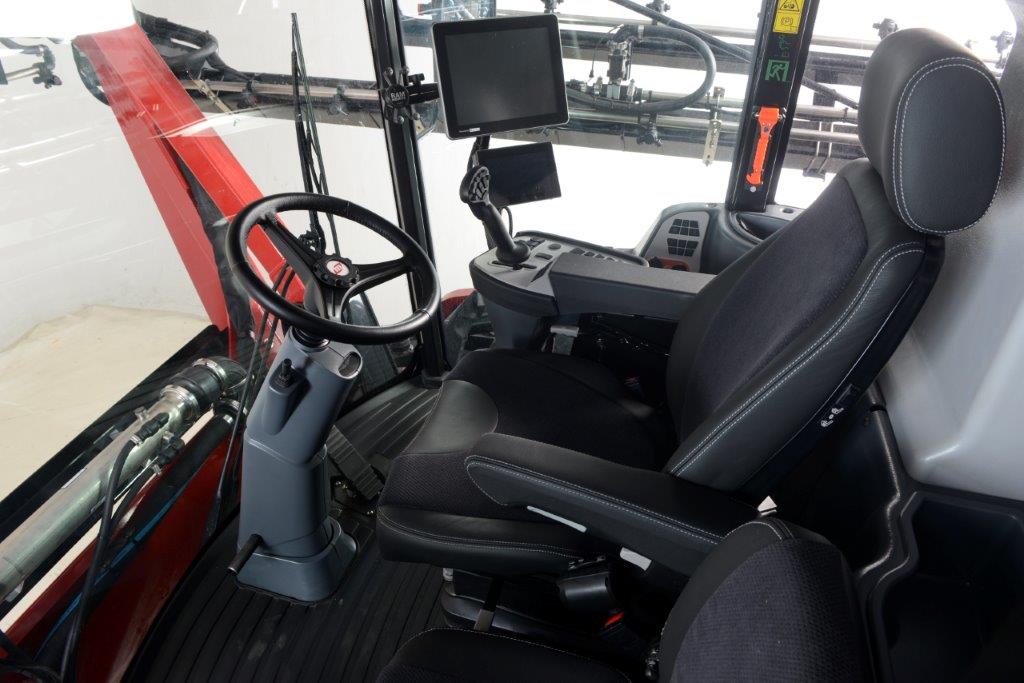

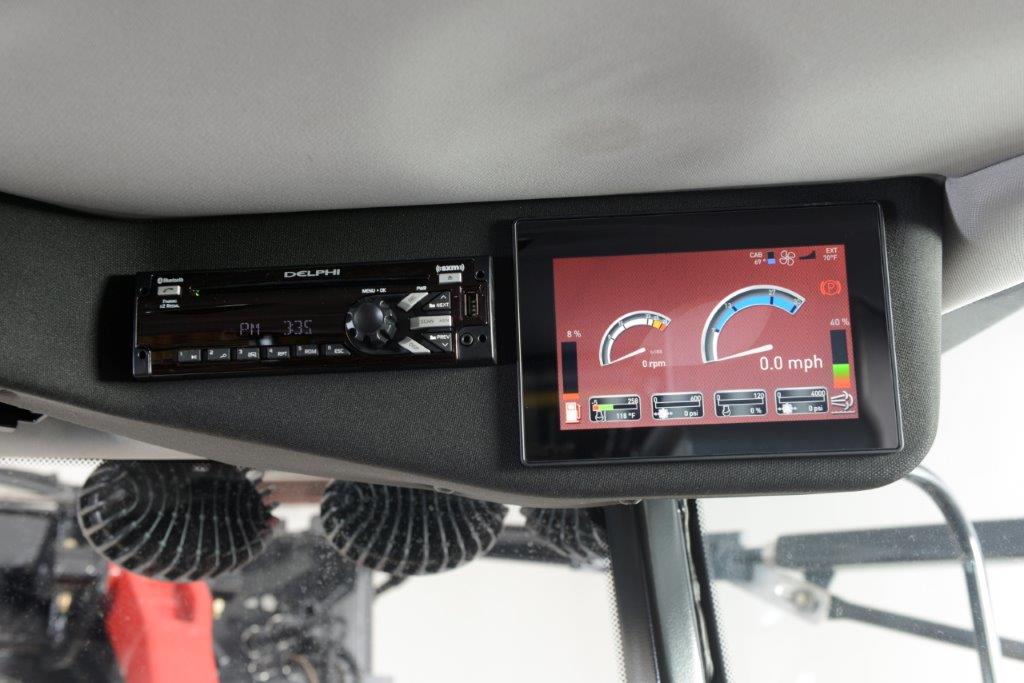

- "Ultra Quiet" cab, variable speed pressurization fan, charcoal filtration (primary), recirculation filter (secondary), auto climate control, external temperature readout, AM/FM/WX w/CD , XM and blue tooth, with remote armrest controls and 4 speakers, 2-way tilt/telescope steering column with foot pegs, sun visor, cloth air ride seat with folding instructional seat, dual 7” (17.8 cm) chassis monitoring screens, overhead indicator panel for spray functions. Audio jack, USB ports, phone charging ports and 12 volt power outlets.
- Luxury SprayView Cab
- All standard Deluxe SprayView features PLUS: Grammer Evolution leather trimmed operator seat with auto adjust air-ride suspension, heated and vented with power lumbar. Leather trimmed instructional seat, leather wrap steering wheel, 12 volt cooler under instructional seat, rear camera, auto on/off head lights, integrated self-chargeable flash light, 110 volt power out let and a X-Grip for cell phone.
- Engine / FPT® NEF / Australia (APEC)
- 275 hp (205 kw) 288 hp (214 kw) bulge / Tier 2
- Alternator / Batteries
- 200 Amp / three 1000 cca heavy duty batteries
- Fuel Tank / DEF (if equipped)
- 150 gallon (568 L) / 24 gallon (91 L)
- Cooling System
- Efficient Single Pass stacked top to bottom (not layered), variable speed hydraulically driven fan with automatic reversing option
- Transmission
- Hydrostatic drive with electronic controlled single Danfoss 165 cc, H1 series heavy duty pump
- Auxiliary Hydraulic Circuit
- 48 gpm (181.7 lpm) @ 3000 psi (20,684 kpa)
- UltraFlo Hydraulic Pump - Optional
- 48 gpm (181.7 lpm) @ 3000 psi (20,684 kpa)
- Speed Ranges
- 0 to 35 mph (0 to 56 kph) with 4 programmable speed ranges
- Service Brake
- 4-wheel dynamic internal wet disc and oil cooled
- Park Brake
- 4-wheel spring applied
- Steering
- Hydrostatic with two steering cylinders with heavy duty ball joints, no tie rods
- Standard 2 - Wheel Steering
- 18 feet (5.48 m)
- Optional 4 - Wheel Steering
-
- 18 feet (5.48 m) in 2 wheel steer mode
- 13.5 feet (4.1 m( in 4 wheel steer mode
- Tread Width / Fixed Axle
- 120 inches (305 cm) with 320 or 380 tires
- Tread Width / Auto Adjustment
- 120 inch to 160 inch (305 to 406 cm) with 320 or 380 tires
- HydraLink™ Suspension
- Electronically controlled 4-wheel independent, full suspension travel of 20 inches (51 cm), hydraulic leveling/shock absorbers, auto-leveling for each leg
- Crop Clearance
- In cab variable height 72 to 78 inches (182.88 to 198.12 cm)
- Product Tank Options
- 1,000 or 1,200 gallon (3,785 or 4,542 L) stainless steel with 3 inch (7.62 cm) fill connection
- Rinse System
- Standard electric or optional AutoRinse. 150 gallon (568 L) poly tank and 2 inch (5.08 cm) fill connection
- Product Pump - Standard
- Hypro 9306C - 210 gpm @ 80psi (795 lpm @ 5.5 bar) capacity at the pump
- Product Pump - Optional
- High capacity Hypro 9307C - 300 gpm @ 80psi (1,135 lpm @ 5.5 bar)
- Chemical Injection Option / Factory or field installed
- Option of up to 3 injection pumps (high or low volume) and choice of up to four 50 gal (189 L) poly tanks. Note: Requires 1000 (3,785 L) product tank
- Foam Marker Option
- Injection System - uses water from rinse tank - in-cab controls - 3 gallon (11.3 L) foam concentrate tank
- Boom options / MonoBeam
- 90/60, 100/60 or 120/70 foot widths (27/18, 30/18 or 36/21 m)
- Boom options / Truss
- 120/73, 132/73 or 135/73 foot widths (36/22, 40/22 or 41/22 m)
- On/Off Valves or Boom Sections
-
- 90 or 100 foot booms - choice of 5 or 10 on/off valves
- 120 & 135 foot booms - 10 on/off valves
- 132 foot boom - choice of 10 or 12 on/off valves
- Nozzle Body Options for MonoBeam and Truss Boom
- TeeJet 3 way, 3 plus 1 and 5 way
- IntelliSpray Option
- Available on MonoBeam and Truss booms. Includes 36 virtual sections and turn compensation
- Boom option / Spray-Air
- 90/60, 100/60 or 120/73 foot widths (27/18, 30/18 or 36/22 m)
- Boom Travel (transom)
- 100 inches (254 cm)
- Boom Lift Range
-
- MonoBeam Boom - 17 to 117 inches (43.2 to 297.2 cm) with suspension set at 75 inches
- Truss Boom - 25 to 125 inches (63.5 to 317.5 cm) with suspension set at 75 inches
- AutoSteer Ready
- Yes
- Spray Controller Option / Factory installed
- Raven Viper 4+ with RS1 steering control
- Wheelbase
- With crop clearance setting of 75 inches (190.5 cm) wheel base is 151 inches (383.5 cm)
- Dimensions (Shipping)
-
- Height / 153 inches (388.6 cm)
- Width / MonoBeam boom - 163 inches (414 cm)
- Width / Truss boom - 183 inches (464.8 cm)
- Length / varies depending upon boom options
- Shipping Weight (weights can and do vary depending upon options)
-
- 7310 / 1,000 gallon / 2 wheel steer / 100 foot boom - 28,700 lbs. (13,018 kg)
- 7310 / 1,000 gallon / 4 wheel steer / 100 foot boom - 29,700 lbs. (13,471 kg)
- 7310 / 1,200 gallon / 2 wheel steer / 100 foot boom - 29,000 lbs. (13,154 kg)
- 7310 / 1,200 gallon / 4 wheel steer / 100 foot boom - 30,000 lbs. (13,607 kg)
