    AgLeader Rightspot

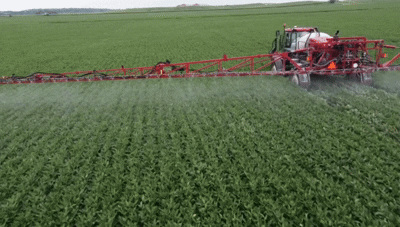

    AgLeader RightSpot delivers precision spraying with nozzle-by-nozzle control, ensuring consistent application rate, pressure, and droplet size across every acre. Whether speeding up, slowing down, or turning, RightSpot maintains accuracy with turn compensation, variable speed performance, and precise edge coverage. Easy to monitor and maintain through AgLeader’s InCommand display, it reduces overlap, saves inputs, and maximizes efficiency—helping you spray smarter, simpler, and more effectively.

    LIVE LOCAL THINK LOCAL

    As locally owned and operated businesses, our strong network of franchisees are part of their local community and understand the needs of their local customers.

    Ag Leader

    RightSpot Technical Specs & Features

    • Nozzle Capacity

      • Up to 144 nozzles with standard (15 Series) valves

      • Up to 110 nozzles with high-rate (24 Series) valves

    • Flow Capacity (per nozzle)

      • 15 Series valve: 1.5 gal/min max (with proper nozzle)

      • 24 Series valve: 2.4 gal/min max (with proper nozzle)

    • Control Technology

      • Blended Pulse® PWM (10 or 20 Hz) for smooth spray pattern

      • Independent control of rate & pressure (decoupled system)

    • Boom & Nozzle Compatibility

      • Single boom line with one valve per nozzle body

      • Works with Hypro/Arag, TeeJet, and Wilger nozzle bodies

      • Compatible with most self-propelled & pull-type sprayers (e.g. Deere, Case, Hagie, Rogator, Apache)

    • Display & User Interface

      • Controlled through AgLeader InCommand displays

      • Live monitoring of nozzle status, rate, and pressure

      • Real-time mapping of application data

    • Power Requirements

      • Two power circuits, each fused at 20 amps (40 amps total)

    • Smart Features

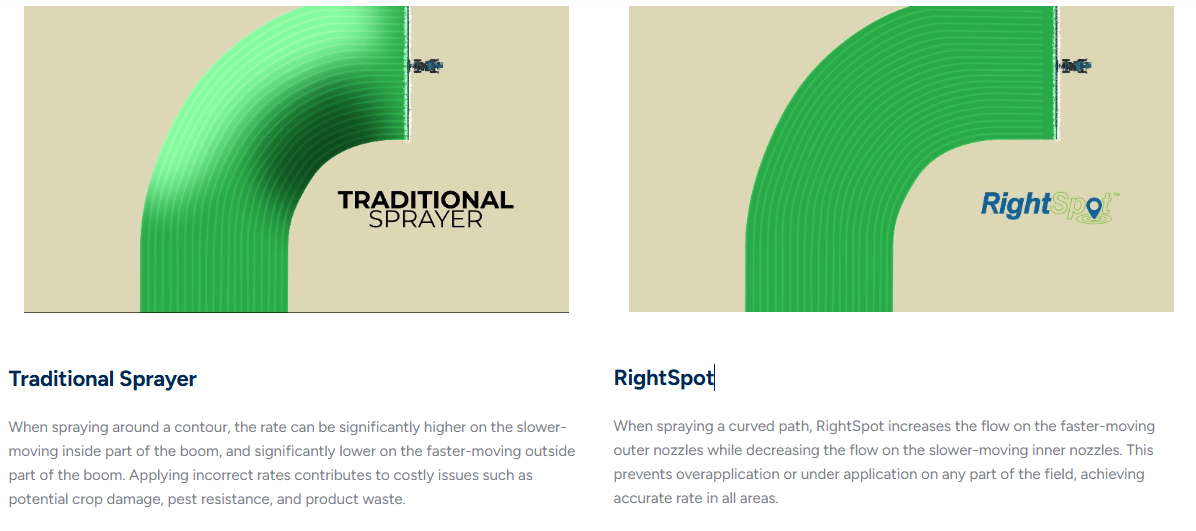

      • Turn compensation for accurate inner/outer boom coverage

      • Autoswath nozzle-by-nozzle shutoff to reduce overlap

      • Pressure fallback mode if nozzle control is interrupted

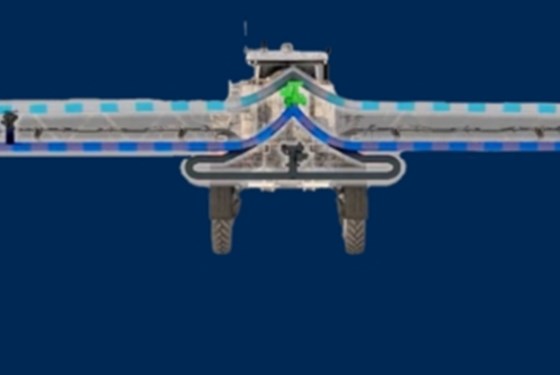

      • BoomLoop integration (optional) for automated priming, flushing & agitation

    • Maintenance & Serviceability

      • Modular design: replace boom sections individually

      • Tool-free service for solenoids and valves

      • Built-in diagnostics and alerts via InCommand
