Banjo Manifold Ball Valves

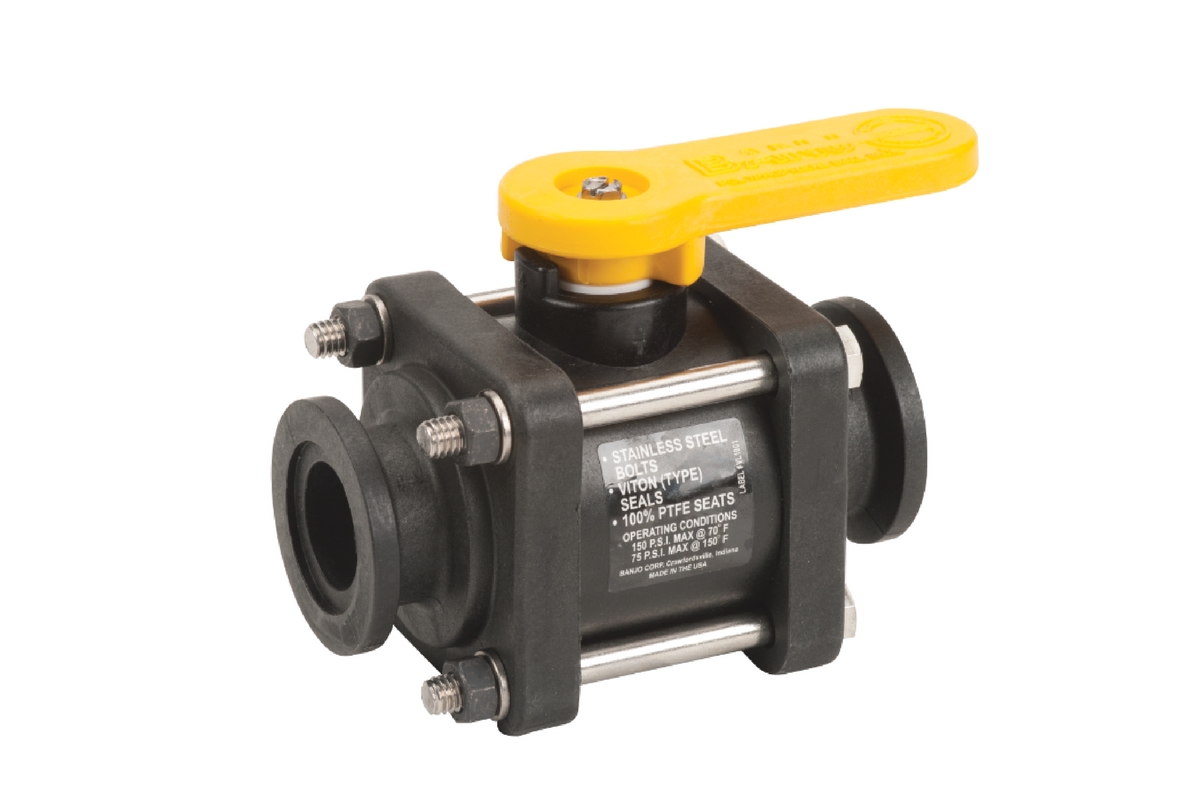

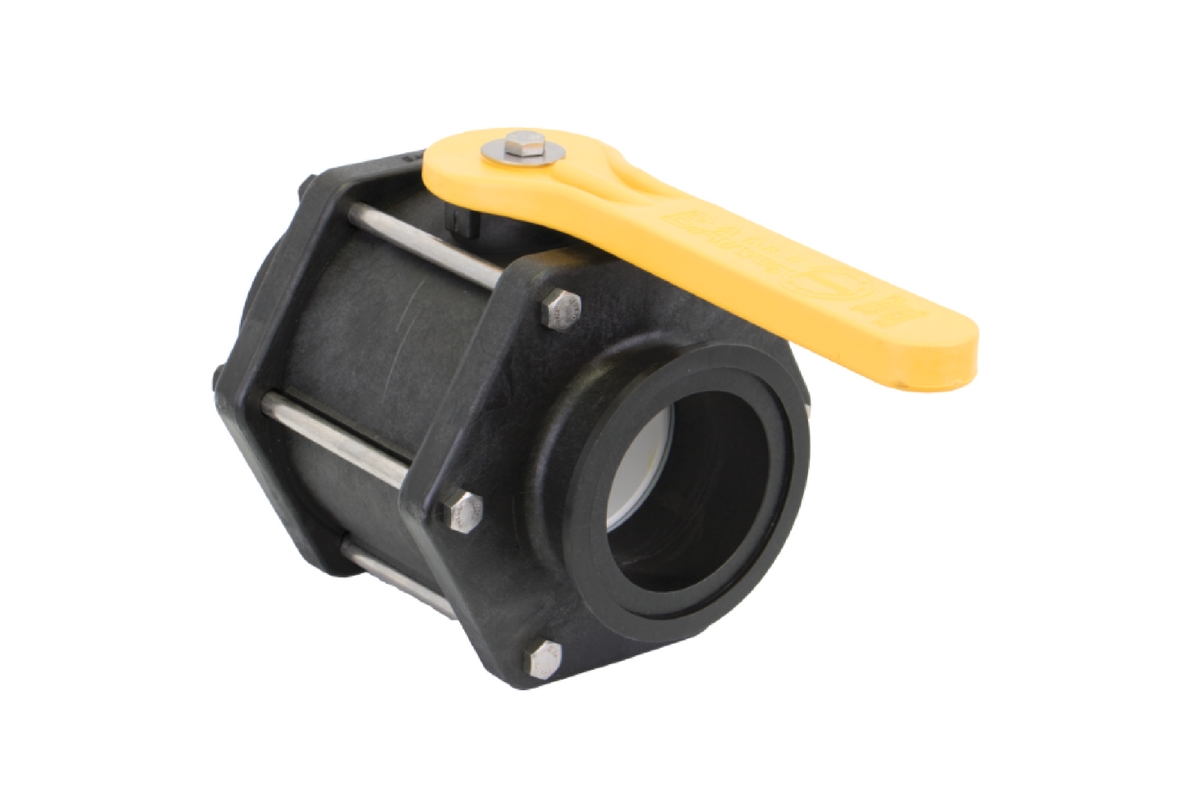

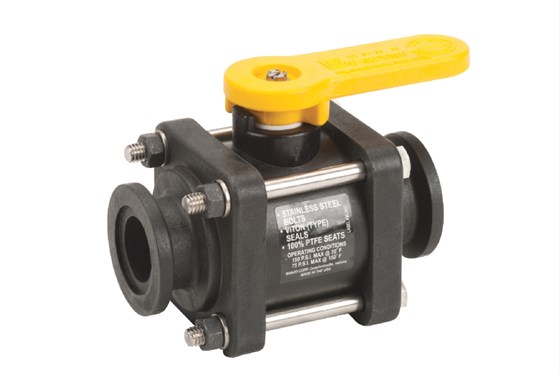

Banjo manifold 4 and 6 bolt manual ball valves

LIVE LOCAL THINK LOCAL

As locally owned and operated businesses, our strong network of franchisees are part of their local community and understand the needs of their local customers.

FKM (viton) seals
PTFE self-lubricating stem bushings and seats cannot stick or bind
Precision molded in polypropylene reinforced with fibreglass for additional strength
Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.
Ball is diamond turned, after molding, to make it spherically perfect, which provides contact between the ball and seats

To order:

Part No.	Description	Max PSI	Pipe Size	Thru Ball
MV100CF	1" flang 4-bolt ball valve	300	1"	1"
MV200CF	2" flang 4-bolt ball valve	225	2"	1 1/2"
MV220CR	2" flang 4-bolt ball valve	300	2"	2"
MV300	3" standard flang 6-bolt ball valve	150	3"	2 1/2"
MV300CF	3" full port flang 6-bolt vall valve	200	3"	3"
