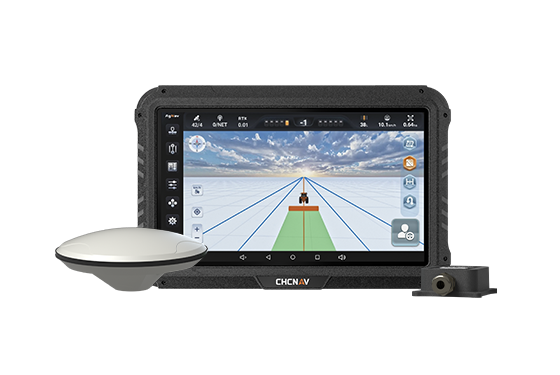

    CHCNAV Guide 10

    Guide 10 is a cost-effective manual guidance system that keeps your operations accurate and efficient. With an IMU sensor for terrain compensation, it delivers reliable performance across any field. Its rugged 10.1" display makes navigation simple, while multiple guidance patterns reduce overlaps and skips. Built to grow with your farm, Guide 10 can be upgraded to a full GNSS RTK auto-steering system, protecting your investment for the future.

    LIVE LOCAL THINK LOCAL

    As locally owned and operated businesses, our strong network of franchisees are part of their local community and understand the needs of their local customers.

    CHC NAV

    Key features -

    • GNSS precision for reducing skips and overlaps

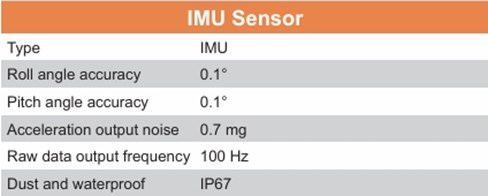

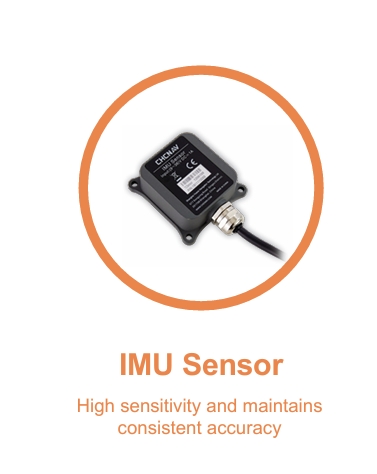

    • IMU sensor for terrain compensation on slopes and uneven ground

    • Multiple guidance patterns: AB line, A+ line, curve line, circular curve line

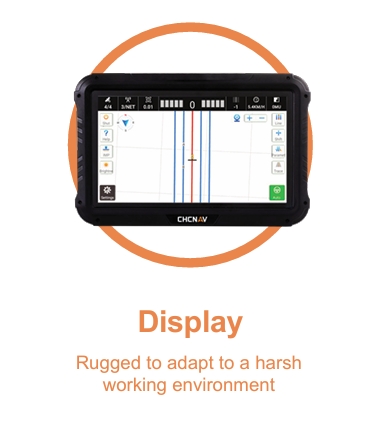

    • 10.1" colour touchscreen, bright and sunlight-readable

    • Scalable and upgradeable to full GNSS RTK auto-steering

    • Rugged construction built for shocks, vibration, and tough field conditions

    Other information to consider -

    • Option Precision Farming – Perfect for farmers who want to step into guidance technology without the upfront cost of full auto-steer.

    • Lightbar + Mapping View – Visual cues and on-screen coverage maps help you see exactly where you’ve been, cutting wasted inputs.

    • Field Data Records – Automatically logs worked area, speed, and job time for easy record-keeping and proof of work.

    • Wide Machine Compatibility – Works on tractors, sprayers, spreaders, seeders, and more, regardless of brand.

    • Portable Between Vehicles – Can be moved easily from one machine to another, making it ideal for mixed fleets.

    • Weather & Dust Resistant – Built for outdoor use, with an IP-rated housing that withstands rain, dust, and tough farm conditions.

    • Future-Proof Investment – Start with manual guidance and upgrade later to RTK auto-steering without replacing the entire system.

    * Comes with 1 camera included with up to 4 optional

    1. Precision Manual Guidance
    Stay on track with GNSS accuracy that reduces overlaps and skips, boosting efficiency and crop quality.

    2. Smart Terrain Compensation
    The built-in IMU sensor adjusts for slopes and rough ground, keeping your passes straight and consistent.

    3. Flexible Guidance Patterns
    From AB lines to curves and circular paths, Guide 10 adapts to any field shape for maximum efficiency.

    4. Simple, Bright Display
    A rugged 10.1" colour touchscreen makes navigation easy, with visibility optimised for full sunlight.

    5. Ready to Upgrade
    Start with manual guidance today, then upgrade to full GNSS RTK auto-steering for centimetre-level accuracy when you’re ready.

    6. Built Tough for Farming
    Designed to handle shocks, vibration and harsh conditions, Guide 10 delivers long-lasting reliability in the field.
