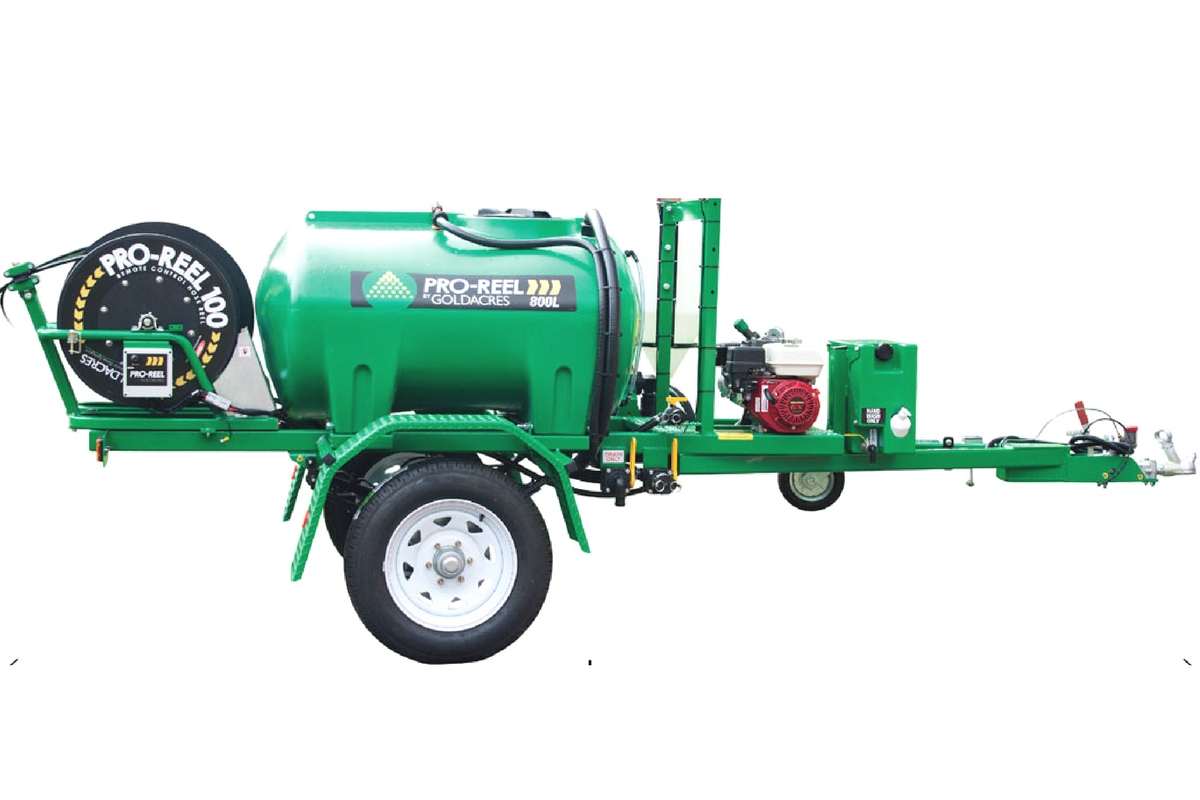

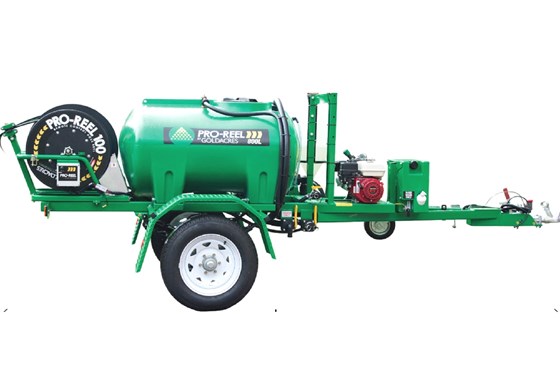

The fully self-contained trailing Pro-Reel® is a very tough on/off road spray trailer configured with the most practical features.

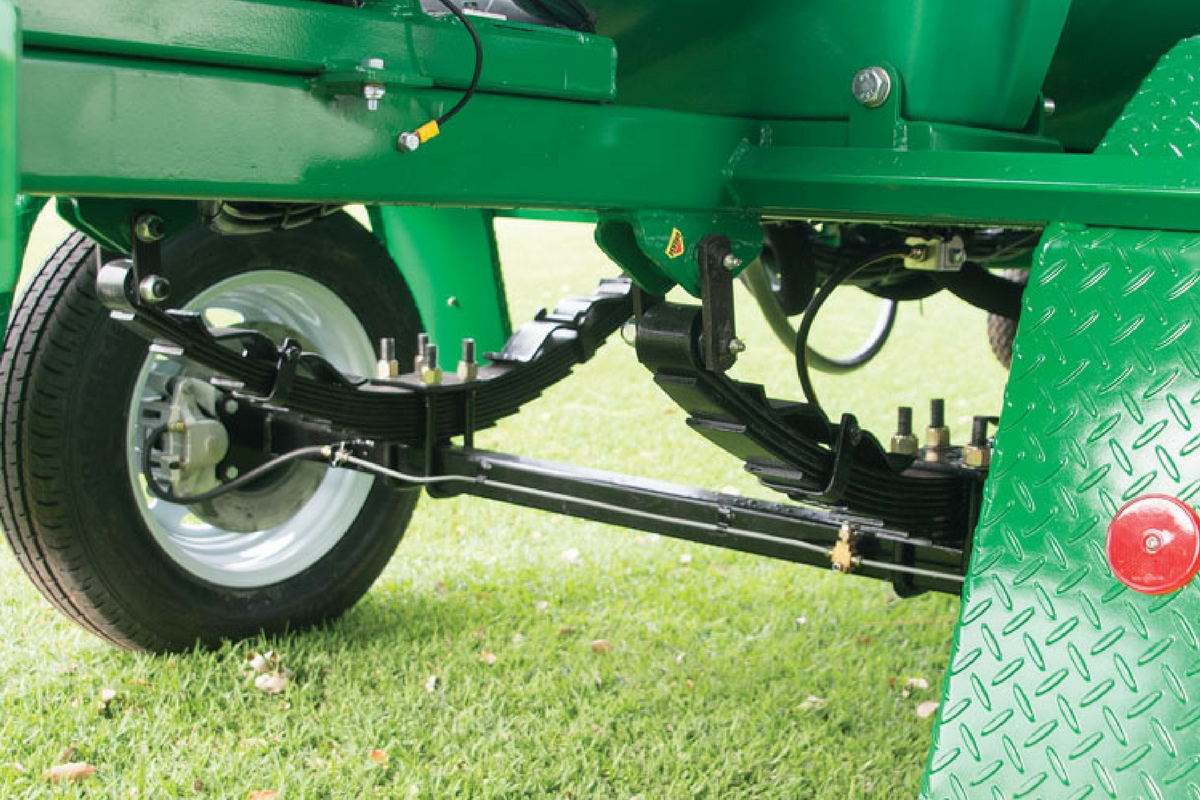

It has a strong fully welded RHS frame, 2 tonne axle as standard with hydraulic over run disk brakes for trouble free towing.

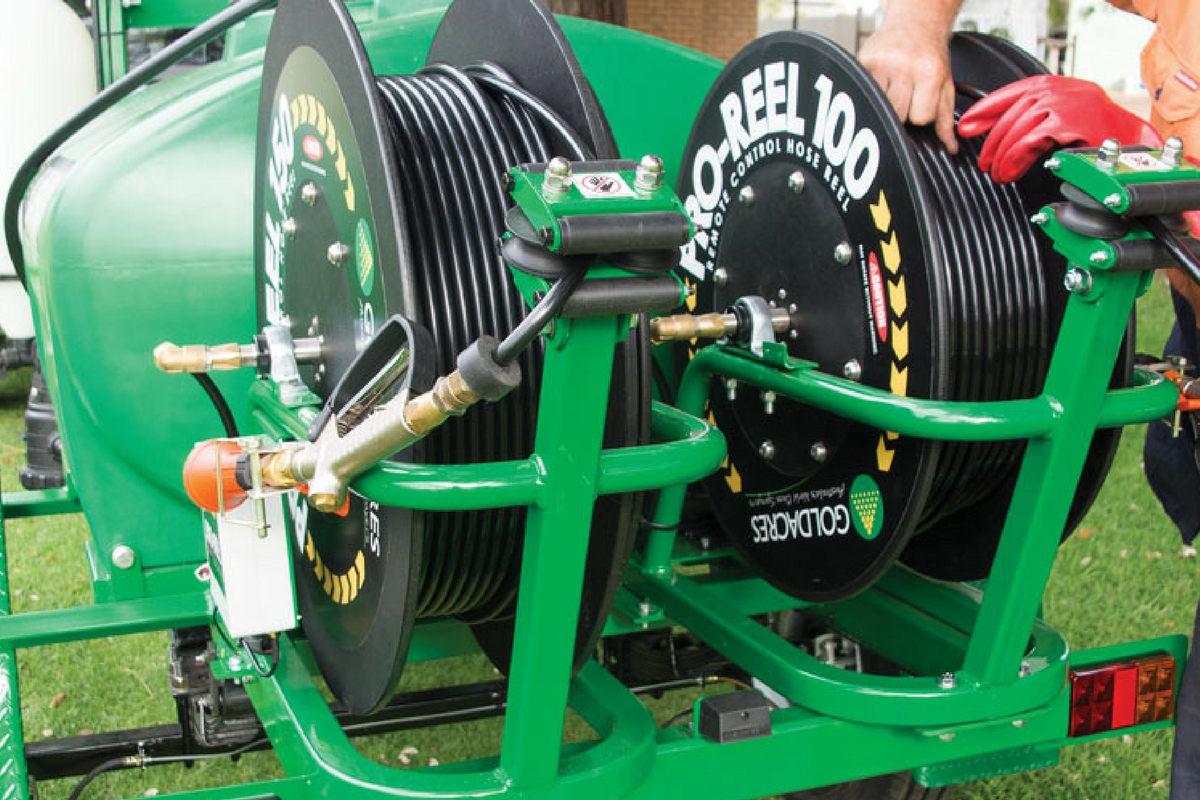

Weight balance has been carefully considered with the single axle allowing a very smooth trailer ride with the tank full or empty. The Pro-Reel® trailer comes in tank sizes 800 or 1000L and can be fitted with either single or twin auto re-wind Pro-Reel® in sizes 50, 100 or 150 metres in length along with the trusty Turbo 400 spray gun.
Sprayer control is via a manual regulation valve with manual taps and a suction filter with a shut-off valve fitted across the range. The reliable Honda GX200 engine is fitted with an optional electric start available on request. Pumping duties are taken care of by the 40 l/min Delta pump coupled to the engine via a 6:1 reduction gearbox. This is a bullet proof combination that will ensure years of trouble free spraying.
A 45L flush tank is fitted to enable the system to be completely flushed after use and for convenience and hand wash tank and soap dispenser are fitted as standard.
800L Pro-Reel® Trailed
1000L Pro-Reel® Trailed
50, 100 & 150m (100m standard)
800L & 1000L
Honda GX200 manual or electric start
Udor 40 l/min 580 psi twin diaphragm
Manual 3 way, manual pressure adjustment with dump valve
200m range 12v dc electric motor 150w 450 rpm 16 amp draw
Remote engine and pump shut-off 200m range
Turbo 400, adjustable spray pattern
50 mesh with shut-off
Fully welded RHS / tubular construction
Hose reel drive system
12v dc motor with adjustable v-belt
1.5, 2.0, 2.5, 3.0 and 3.5mm (2.5mm standard)
Anti-corrosion poly disc, stainless inlet shafts an external hardware
