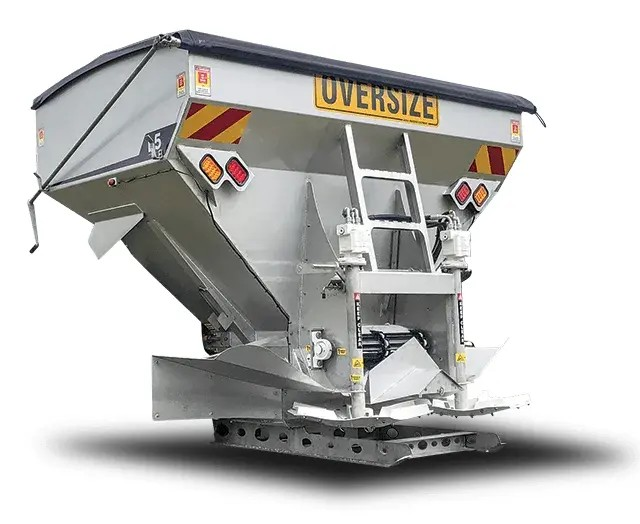

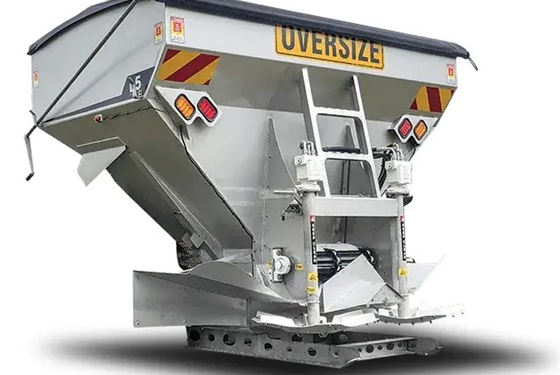

Hansa L Series
The Hansa L Series Linkage Spreaders deliver durability and precision with capacities from 2,000L to 6,000L. Designed for better weight distribution closer to the tractor, they handle urea, lime, and more with spread widths up to 50m. The stainless steel build resists corrosion, while ISOBUS compatibility and optional features like section control and touchscreen controllers offer smart, adaptable performance. Ideal for modern farming, the L Series combines efficiency, reliability, and advanced control in one robust package.
- Models & Capacities:
L2: 2,000L capacity; Urea: 1,500kg; Lime: 2,500kg
L2.5: 2,500L capacity; Urea: 1,800kg; Lime: 3,200kg
L3: 3,000L capacity; Urea: 2,250kg; Lime: 4,000kg
L4: 4,000L capacity; Urea: 3,000kg; Lime: 5,000kg
L5: 5,000L capacity; Urea: 3,750kg; Lime: 6,000kg
L6: 6,000L capacity; Urea: 4,500kg; Lime: 7,500kg
- Spread Widths:
Urea: Up to 36 meters
SSP (Single Super Phosphate): Up to 50 meters
- Operational Requirements:
Hydraulic Oil Flow: 80 L/min
Maximum Payload: 8,000 kg
Warranty: 12 months
- Control Systems:
ISOBUS compatibility for seamless integration with various terminals
Optional Hansa H5 (5” touchscreen) and H7 (7” touchscreen) controllers
Variable rate ready as standard
- Optional Features:
900gsm rollover tarp for protection against the elements
Twin conveyor system for headland and section control (available with H7 & ISOBUS)
Detachable 2-ply mudguards
