Horsch Avatar Range

Elevate your seeding strategy with the HORSCH Avatar Series: • Avatar SD: Compact precision—dual tanks, electric metering, and low-maintenance single-disc design for efficient, flexible seeding operations. • Avatar SW: High-capacity seed-wagon efficiency—12 000 L split hopper enables simultaneous seed and fertiliser application, with robust coulters for speed and accuracy. • Avatar 18 MD: Ultra-high output—triple-hopper design delivers triple-product flexibility and reduced downtime across expansive acres. All models feature the renowned Single Disc coulter system for unmatched precision, minimal soil disturbance, and operational reliability.

LIVE LOCAL THINK LOCAL

As locally owned and operated businesses, our strong network of franchisees are part of their local community and understand the needs of their local customers.

Below is a detailed breakdown of their specifications and standout features:

Avatar 3.16 – 8.16 SD Series

Working width: 3 m to 8 m (varies by model)
Row spacing: 16.7 cm
Hopper capacity:
- Double hopper: 3,800 L – 5,400 L
- Triple hopper: 3,800 L
Key features: SingleDisc coulter with integrated depth-control wheel for accurate placement; versatile hopper options for seed and fertiliser; low ground disturbance, ideal for direct or mulch seeding (horsch.com)

Avatar 12.25 / 18.25 SD (Seed Wagon)

Working width: 12 m or 18 m depending on model
Transport width: Compact 3 m facilitated by telescopic axle
Hopper capacity:
- Double hopper: up to 8,500 L (e.g. 18.25 SD with 50:50 split)
- Optional third hopper: +2,400 L
Coulter pressure: Up to 350 kg per opener
Row spacing: 25 cm (one-row design) for ease of mechanical weeding
Highlights: Large tyres for reduced soil compaction, half-width shut-off standard, optionally electric with ISOBUS/SectionControl, SingleDisc coulter for precision

Avatar SW (Seed-Wagon 12 m)

Working width: 12 m
Transport width: ~4.36 m; Transport height: ~5.28 m
Hopper capacity: Double hopper of 12,000 L, configurable 50:50 for seed and fertiliser
Row spacing: ~20 cm; Coulter pressure: Up to 350 kg
Notable: Very high hectare output, SingleDisc precision placement, large-capacity hopper to minimise refill interruptions

Avatar 18 MD (Multi-Tank, 18.29 m)

Working width: 18.29 m
Transport width: 4.80–5.11 m
Hopper capacity: 12,600 L across triple tanks
Row spacing: 10 in (≈ 25 cm); Coulter pressure: Up to 350 kg; Speed potential: up to 15 km/h
Features: Excellent for large-scale operations needing multiple product application, precision seed placement through single disc coulters with depth-control

Common Advantages Across the Avatar Series

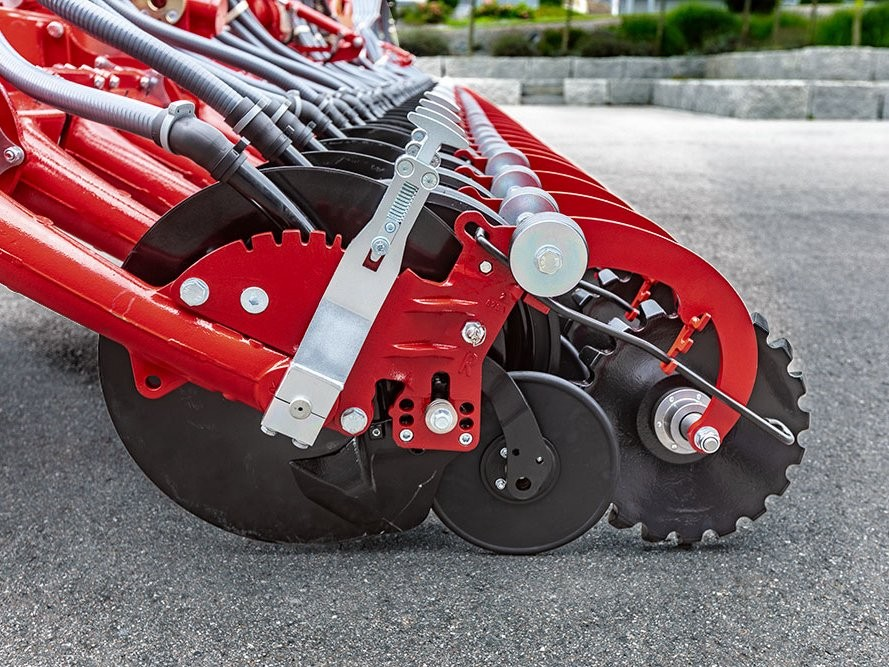

SingleDisc coulter technology: Each opener has its own depth-control wheel, ensuring consistent sowing depth and emergence. The design limits soil disturbance—ideal for direct-seed or no-till operations
High coulter pressure: Up to 350 kg allows penetration in challenging soil conditions; supported by rubber torsion suspensions that eliminate pivot wear and reduce maintenance
Maintenance efficiency: Maintenance-free bearings and reduced service points ensure durability and uptime

Summary Table

Model	Working Width	Hopper Capacity	Row Spacing	Notable Features
Avatar SD (3–8 m)	3–8 m	3.8–5.4 k L	16.7 cm	Compact, direct-seed, low disturbance
Avatar 12/18 SD	12 m / 18 m	8.5 k L (+2.4 k L opt.)	25 cm	High capacity, tele-axle, versatile hoppers
Avatar SW	12 m	12 k L (split)	20 cm	Seed + fertiliser, max efficiency
Avatar 18 MD	18.29 m	12.6 k L triple hopper	25 cm	Multi-product, wide coverage, precision
