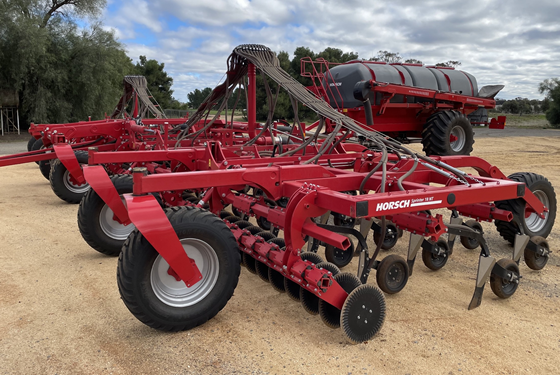

Horsch Sprinter Range

HORSCH Sprinter – Technical Information

Sprinter ST (Standard Tine Drill)

• Working widths: 4 m, 6 m, 8 m, 9 m, 12 m

• Hopper capacity: 2,800 L (4–6 m) or 5,000 L (9–12 m)

• Seed metering: Electric drive with calibration wizard

• Coulter options: Duett coulter (seed + fertiliser), thin share coulter for small seeds

• Row spacing: 25 cm or 30 cm

• Tractor power requirement: From ~90 kW (120 hp) for smaller models

• Highlights: MultiGrip tine for consistent depth; large underframe clearance (60 cm) for residue flow; low-maintenance bearings

Sprinter NT (No-Till & Heavy Residue)

• Working widths: 12 m, 18 m, 24 m (with SW seed wagon)

• Hopper: Large capacity via SW wagon – 12,000 L (split hopper)

• Coulter: Narrow NT chisel coulter designed for minimal disturbance in no-till conditions

• Row spacing: 25 cm

• Coulter pressure: High pressure for consistent penetration in hard soils

• Special feature: Ideal for dry sowing, stubble seeding, and large-scale operations

Sprinter SW Combination

• Seed wagon options: 8,000 L – 12,000 L split hoppers (seed + fertiliser)

• Filling: Quick-fill auger system

• Distribution: Even product flow to all coulters via central metering system

• Transport width: From 3 m (folding designs)

Common Features Across the Sprinter Range

• Duett coulter technology: Places seed and fertiliser in one pass with precise separation

• High clearance frame: Allows smooth operation in heavy residue without blockages

• Minimal soil disturbance: Retains moisture and limits erosion risk

• Robust construction: Heavy-duty frame built for Australian conditions

• Low maintenance: Maintenance-free bearings and minimal greasing points

• Versatility: Capable of seeding cereals, legumes, canola, and cover crops
