Miller Nitro with Spray Air, SprayView Cab"Ultra Quiet" cab with air ride, pressurization, charcoal filtration, heat/AC, AM/FM/WX w/CD, 2-way tilt/telescope steering wheel, sun visor, cloth air ride seat with folding instructional seat, Chassis Monitoring SystemPremium SprayView CabAll standard SprayView features PLUS Grammer Evolution suede leather seat with air-ride suspension, heated and cooled.
Leather wrap steering wheel, Auto Climate Control, Bluetooth XM stereo with 4 speakers, lighted cup holder, deluxe dome lights, X-Grip for cell phone, rear camera.Cummins® EnginesQSL 8.9L 333hp Tier 3 Alternator200 AmpFuel Tank150 gallon (568 L)Cooling SystemEfficient Single Pass "Stacked" (not layered), hydraulically driven fan with reverse optionTransmissionTorq-Trac® hydrostatic drive system with Twin Sauer Danfoss heavy duty pumps.

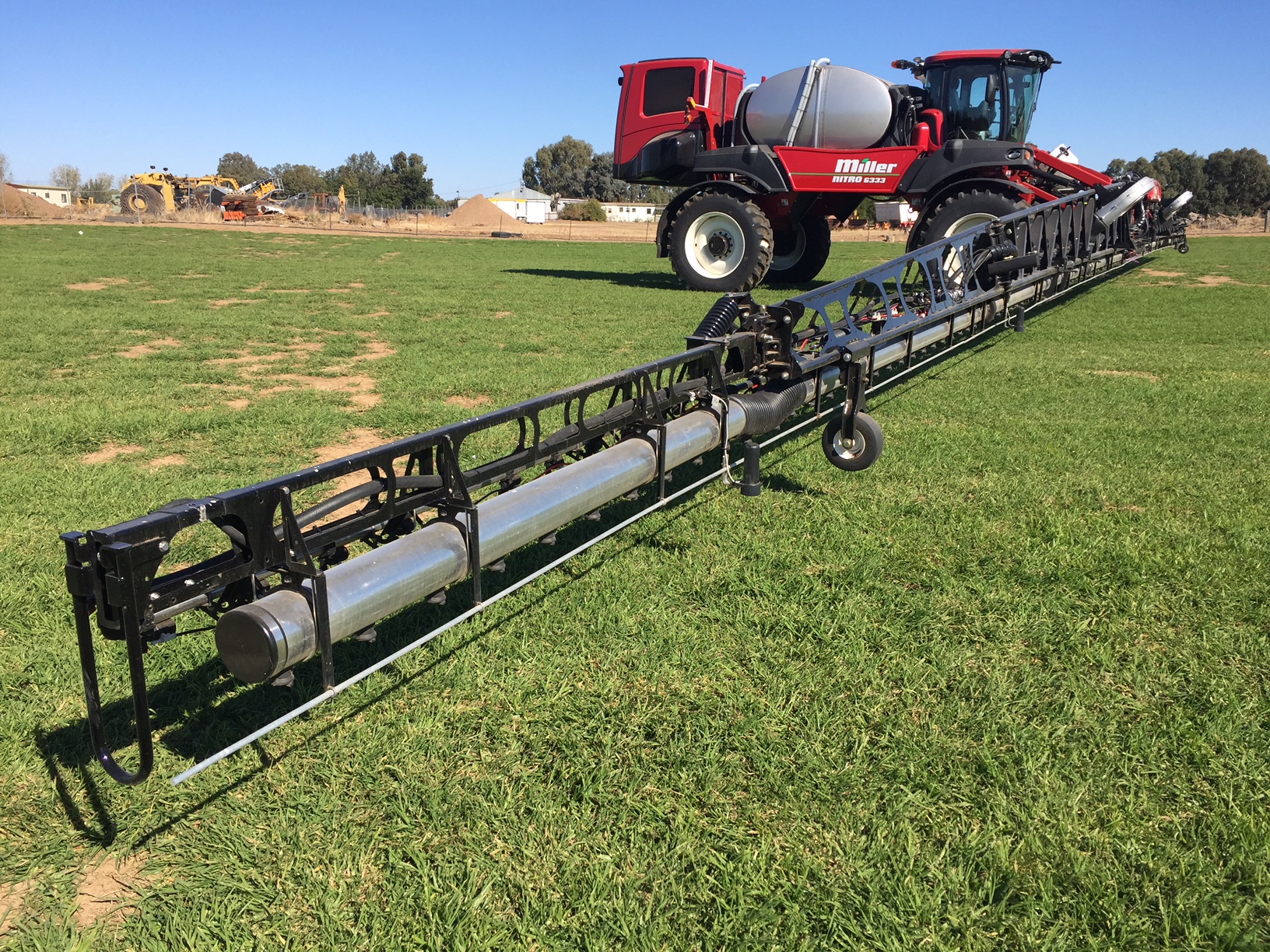

Auxiliary Hydraulic Circuit 44 GPM (166.5L/min)UltraFlo Hydraulic Pump, 0 to 32 mph (0 to 51 kph) with 4 programmable speed rangesService Brake4-wheel dynamic internal wet disc and oil cooledPark Brake4-wheel spring appliedSteeringHydrostatic with two steering cylinders, no tie rodsStandard Wheel Steering21' (6.4m) in 2 wheel steer mode Tread Width Adjustment120" to 160" (305 to 406 cm) hydraulic adjustment standardHydraLink™ Suspension4-wheel independent, full suspension travel of 20" (51cm), hydraulic leveling/shock absorbers, auto-leveling for each legGround Clearance74" to 76" (188 to 193 cm) varies with tire sizeProduct Tank 1600 gallon ( 6056 L) stainless steel Rinse System electric in-cab controls, 150 gallon (568 L) poly tank and 2" QuickFill High capacity Hypro 9307C - 310 gpm @ 80psi (1,173 L/min @ 5.5 bar) 135/73Spray-Air™ Truss Boom 120/73Boom Travel

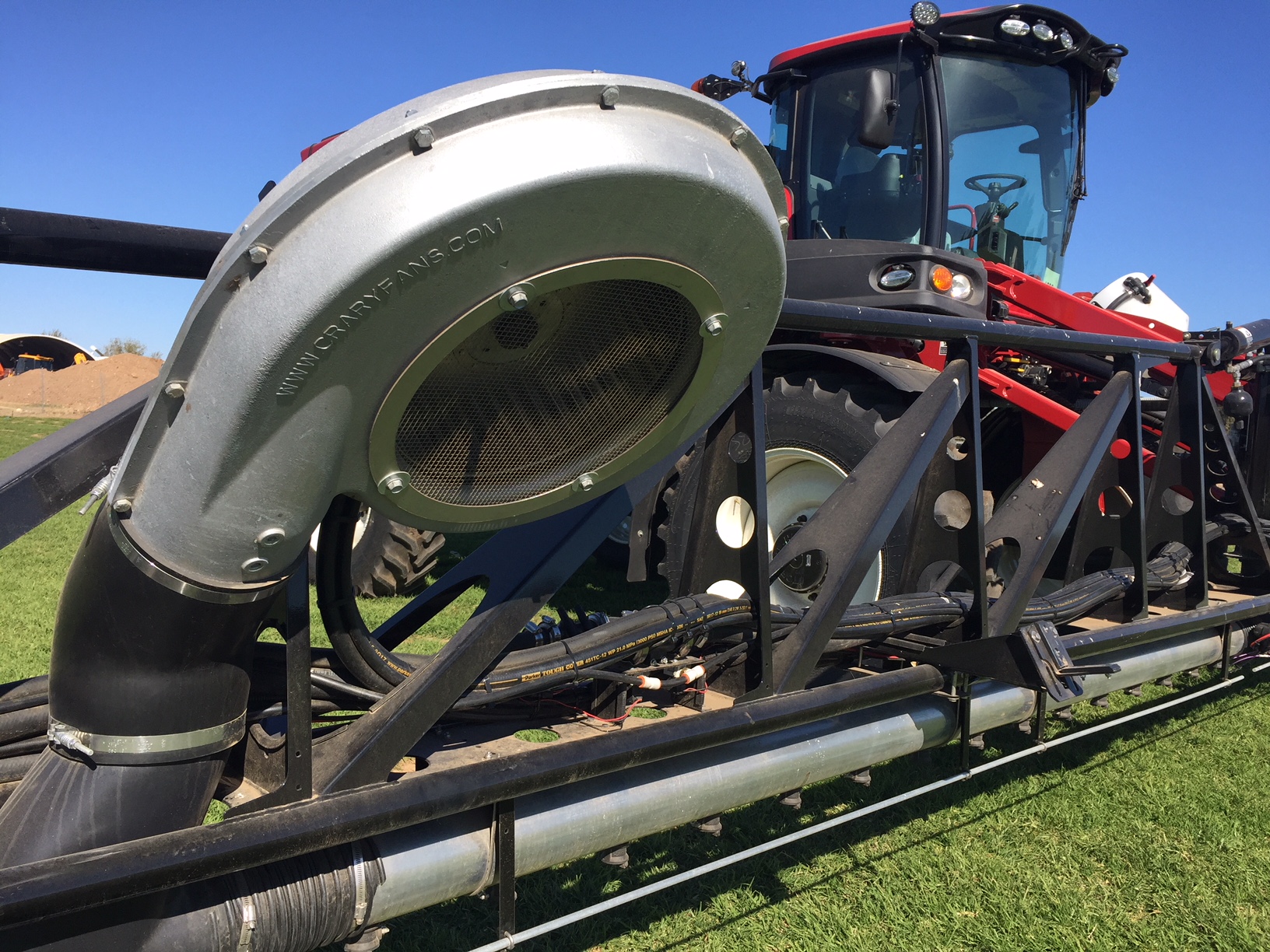

Spray Controller OptionsRaven® Viper 4+Wheelbase177" (450cm)Dimensions (Shipping)H: 160" (406cm) / W: 145" (368cm) / L: 363" (922cm)• The Air Nozzles, spaced every 10” along the air boom, atomizes the spray droplets using Dial-A-Drop™ technology. This creates the optimum-sized droplets that are not affected by speed and pressure changes, ensuring a uniform application over the entire field.
• The Air Nozzle blasts the spray droplets deep into the crop canopy, ensuring complete top-to-bottom leaf surface coverage. No other application technology can measure up to the total plant coverage from the Spray-Air nozzle.
