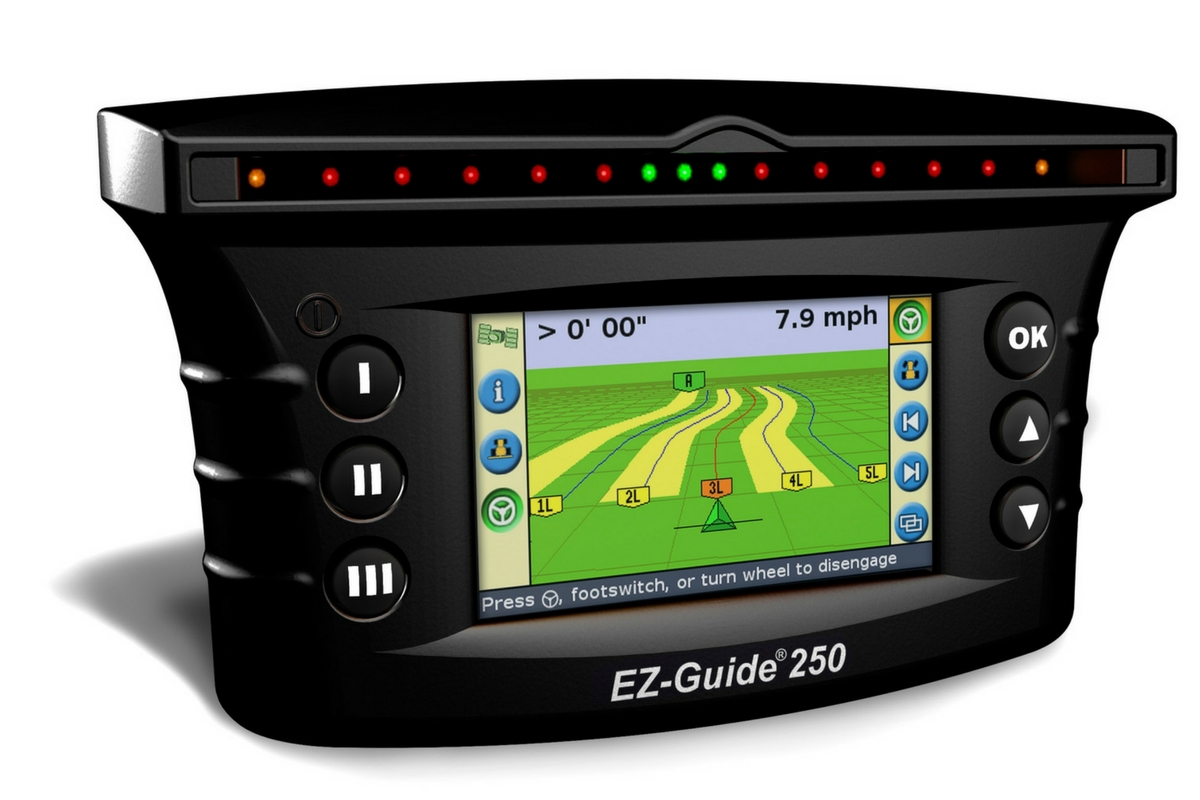

Trimble EZ-Guide 250

The EZ-Guide 250 features simple on-screen wizards, a night mode function and either perspective or overhead view to see exactly where you are going.

LIVE LOCAL THINK LOCAL

As locally owned and operated businesses, our strong network of franchisees are part of their local community and understand the needs of their local customers.

EZ-Guide 250 System features

Delivers submeter accuracy using a built-in receiver, but can be upgraded to 6″-8″ accuracy by adding the optional AG15 antenna
Capable of assisted steering when the EZ-Steer system is added
Work in eight different guidance patterns to best fit the layout and contour of your fields
Operate in NightMode for better visibility at night, and transfer your day's work to a computer using a USB drive to easily print coverage maps and reports

Simple operation

On-screen wizards get you up and running quickly!
The Startup Wizard removes any guesswork by allowing you to input all the information required to start guidance with a quick and way, step-by-step process.
Other wizards help set up EZ-Steer calibration, implement dimensions, and new field pattern selections, including: straight, curve, headland, pivot, and the new FreeForm pattern.

Mapping

The Overhead view shows where you are and where you have been.
For a different point of view, see the Perspective view (shown below).
With the button you can zoom in to see the detail of skips or overlaps, or zoom-out for a complete view of the field in which you are working.
Insert a USB stick and easily transfer your coverage maps to your PC for printing

Function buttons

One-touch function buttons give you quick help and extra how-to information any time.
The first press of the Info button shows acres covered, field area and implement width – press again for quick satellite and position updates.
The Help button shows the on-screen help for the view you are working in.

Note: TRIMBLE products are available at the following franchise: Dubbo, Parkes, Swan Hill and Horsham.

Part No.	Description
92010-00	EZ-Guide 250 AG15 antenna upgrade kit
62000-50	EZ-Steer system for EZ-Guide 250 or 500
44922	EZ-Guide vacuum mounting plate
62034	AG15 antenna mounting plate
64045	Cable EZ-Guide 250 all ports
64228	Cable EZ-Guide 250 power CAN
64272	Cable Radar EZ-Guide 250 for Raven
64273	Cable Radar EZ-Guide 250 for Dickey-John
64274	Cable Radar EZ-Guide 250 for Hiniker
65009	Ground plane 4.6 diameter with adhesive

Part No.	Description
50449	GPS antenna cable, 8m TNC
56237-91	Patch antenna AG w/TNC connector
65168	Cable cigarette lighter to DTM06-12SB
65320	RAM mounting kit diamond plate
65535	Cable 3-pin radar/implement switch
65536	Cable 4-pin CAN
64268-00	USB memory drive, 2Gb
82103-00	LB25 cable kit
82104-00	LB25 hardware mount kit
RL-250	Remote logging w/relay for CFX/FmX/500

Part No.	Description
92000-00	EZ-Guide 250 DGPS w/patch antenna
