Linkage Sprayers

  • Goldacres Linkage Sprayers - Small Frame

    Built with optimum strength and durability in mind, the small frame range of three point linkage sprayers are the perfect blend of function and style.

    LIVE LOCAL THINK LOCAL

    As locally owned and operated businesses, our strong network of franchisees are part of their local community and understand the needs of their local customers.

    GoldAcres

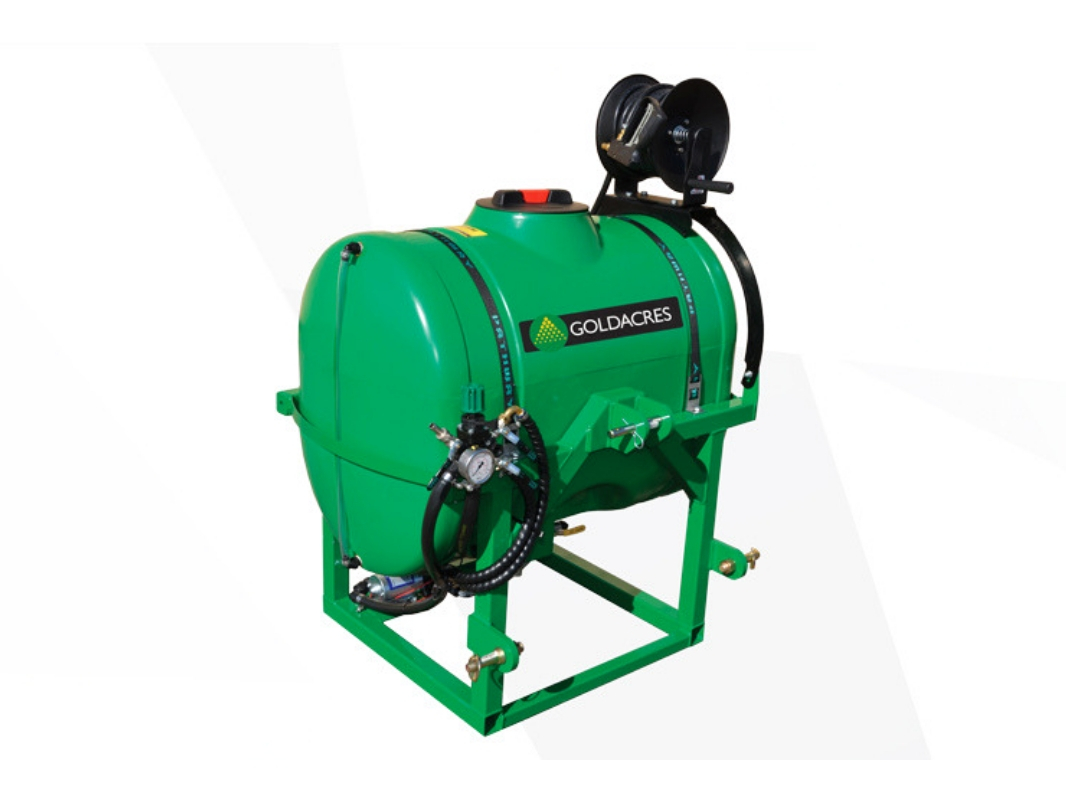

    Choose from the range of small frame - configured sprayers with matched tank, pump and hose reel. Tank sizes are complemented by a matched pump size along with a 30m hose reel and quality pistol grip spray gun. Tank sizes 450, 600, 800 or 1000 litre can be fitted with boom widths from 4 to 12 metres. Units are supplied without booms.

    • A 23 litre handwash tank is conveniently incorporated into the tank design
    • A manual control unit is fitted and features flip section levers along with manual pressure adjustment and bypass valve. Sections can be easily added if necessary.
    • Tanks feature wire reinforced clear sight tubes that are calibrated in 50 litre increments to give a clear reading of the tank volume.
    • Fully mig welded frame RHS with tubular construction using quality Australian made steel
    • Industry leading 3 point linkage cat 2 A frame pin system
    Tank  Part No. Pump Controller Reel Hand Wash Boom Options
    450L GA4907150 Zeta 70L/min pto 3 way manual 30m reel with GunJet 23L tank 4-8m manual boom
    600L GA4907155 Zeta 70L/min pto 3 way manual 30m reel with GunJet 23L tank 4-8m manual boom
    800L GA4907160 Zeta 70L/min pto 4 way manual 30m reel with GunJet 23L tank 4-12m manual boom
    800L GA4907170 Zeta 70L/min pto 3 way electric 30m reel with GunJet 23L tank 4-12m manual boom
    1000L GA4907165 Zeta 70L/min pto 4 way manual 30m reel with GunJet 23L tank 4-12m manual boom or 12m Twinlink boom
    1000L GA4907175 Zeta 70L/min pto 3 way electric 30m reel with GunJet 23L tank 4-12m manual boom or 12m Twinlink boom
  •
