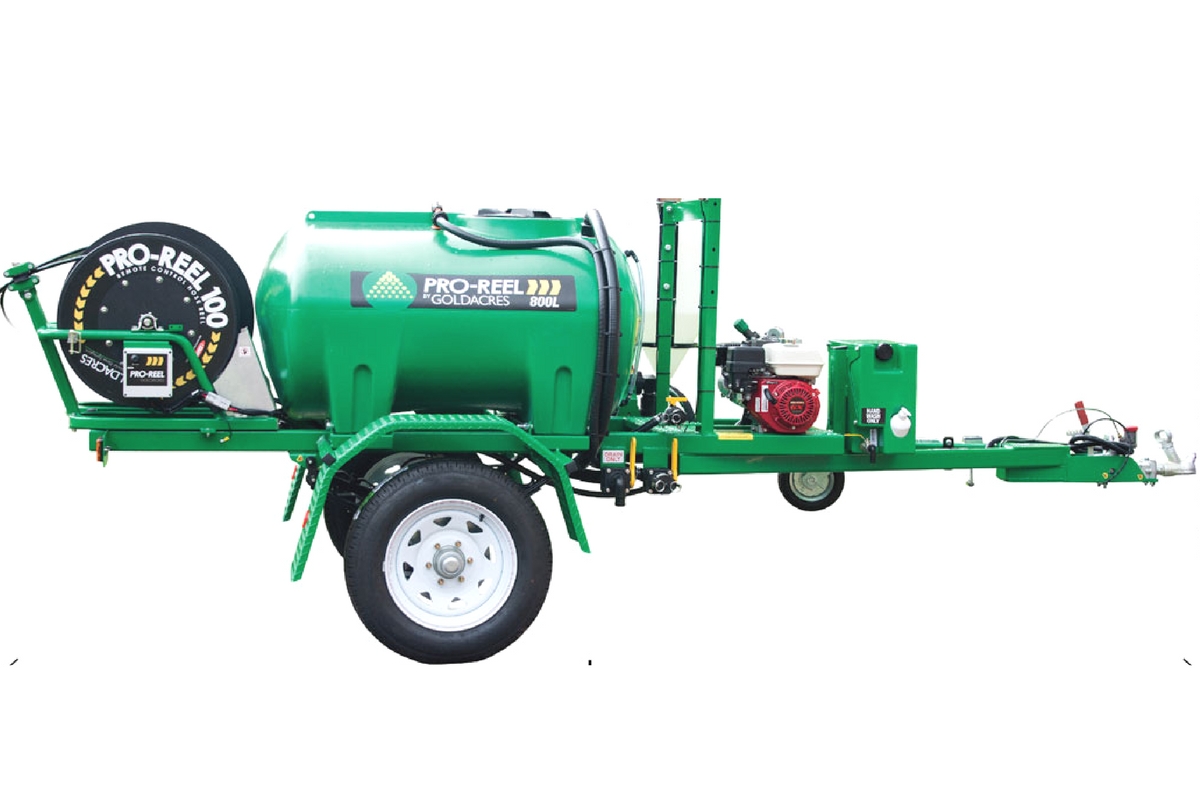

The fully self-contained trailing Pro-Reel® is a very tough on/off road spray trailer configured with the most practical features.
It has a strong fully welded RHS frame, 2 tonne axle as standard with hydraulic over run disk brakes for trouble free towing.
Weight balance has been carefully considered with the single axle allowing a very smooth trailer ride with the tank full or empty. The Pro-Reel® trailer comes in tank sizes 800 or 1000L and can be fitted with either single or twin auto re-wind Pro-Reel® in sizes 50, 100 or 150 metres in length along with the trusty Turbo 400 spray gun.
Sprayer control is via a manual regulation valve with manual taps and a suction filter with a shut-off valve fitted across the range. The reliable Honda GX200 engine is fitted with an optional electric start available on request. Pumping duties are taken care of by the 40 l/min Delta pump coupled to the engine via a 6:1 reduction gearbox. This is a bullet proof combination that will ensure years of trouble free spraying.
A 45L flush tank is fitted to enable the system to be completely flushed after use and for convenience and hand wash tank and soap dispenser are fitted as standard.
||50, 100 & 150m (100m standard)
||800L & 1000L
||Honda GX200 manual or electric start
||Udor 40 l/min 580 psi twin diaphragm
||Manual 3 way, manual pressure adjustment with dump valve
||200m range 12v dc electric motor 150w 450 rpm 16 amp draw
||Remote engine and pump shut-off 200m range
||Turbo 400, adjustable spray pattern
||50 mesh with shut-off
||Fully welded RHS / tubular construction
|Hose reel drive system
||12v dc motor with adjustable v-belt
||1.5, 2.0, 2.5, 3.0 and 3.5mm (2.5mm standard)
||Anti-corrosion poly disc, stainless inlet shafts an external hardware
